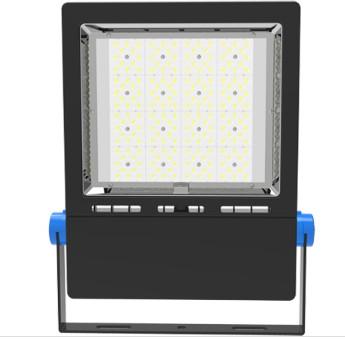

IP66 SMD3030 100W 120LPW Waterproof LED Floodlight

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

IP66 SMD3030 100W 120LPW Waterproof LED Floodlight

Name: IP66 SMD3030 100W 120LPW Waterproof LED Floodlight
Brand: DUALRAYS
Price: 1 USD

Buy cheap IP66 SMD3030 100W 120LPW Waterproof LED Floodlight product

Brand Name : DUALRAYS

Model Number : DR-FL100-CGXP

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 10PCS

Price : Please inquiry for latest price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Input Voltage : AC100~277v 50/60Hz

Driver : Meanwell/Sosen

PF : 0.95

CCT : WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K

LEDs : SMD3030

Beam angle : 10°/ 25°/ 45°/ 60°/ 90°/ 30*70° / 80*140° / 60*130°

Protection : IP66; IK08

Installations : Ground/Wall/Ceiling/Pipe

Operation temperature : -40℃--50℃

Warranty : 5 years

Contact Now

IP66 SMD3030 100W 120LPW Waterproof LED Floodlight

Options:

> Driver: Sosen,Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

> Microwave Motion Sensor;

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

IP66 SMD3030 100W 120LPW Waterproof LED Floodlight

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355350165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355350165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415410175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475470195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475470195	11.5	1PCS/CTN
