4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

DUALRAYS LIGHTING Co.,LTD.
Contact Now

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

  • 1
  • 2
  • 3

Brand Name : DUALRAYS

Model Number : DR-TPL040-BG41

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 8PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 100,000pcs/month

Delivery Time : 5-15 business days

Packaging Details : Netural Package/OEM and ODM Package Available,8PCS/CNT

Power Factor : >0.96

CRI : >83

Efficiency : 160LPW

AC Input Vol : AC 200-277V,50/60Hz

Beam Angle : 120°

Finishing Color(Optional) : White RAL9016

Contact Now

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10



LED Tri Proof Light Feature:

* 3 to 5 years guarantee;

* Luminaire coated in an environmentally friendly polyester powder formulated in a silvery,black and white finish;

* Built-in breathable valve to ensure excellent heat dissipation ability;

* Water-proof; Dust-proof; Damp-proof; Vapor-proof;

* 270°adjustable European Bracket for actual lighting direction;

* Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160LPW.

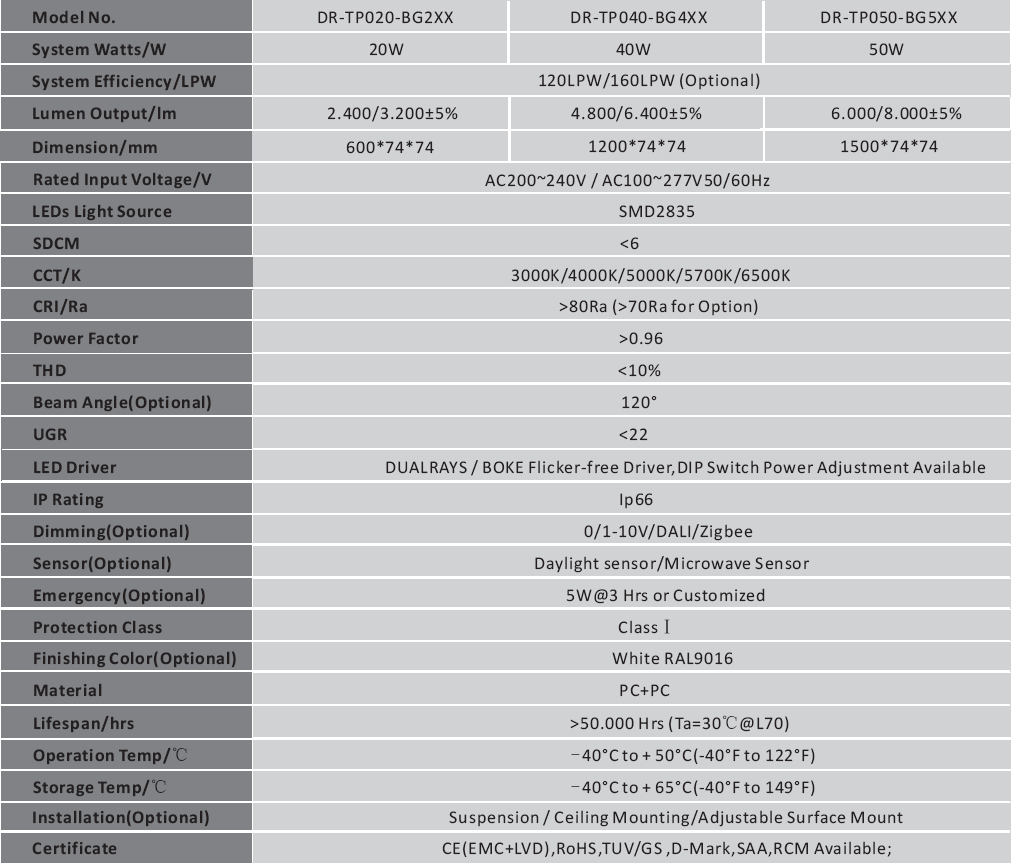

Item Symbol 2ft/20W 4ft/40W 5ft/50W
Model No / DR-TPL020-BG21 DR-TPL040-BG41 DR-TPL050-BG51
Rated Power W 20 40 50
LEDs Typ/Qty

SMD

2835

144PCS 273PCS 312 PCS
Luminous Flux

Clear

Frost

3,200±5%

3,000±5%

6,400±5%

6,000±5%

8,000±5%

7,500±5%

Efficiency

Clear

Frost

Typ.160

Typ.150

Typ.160

Typ.150

Typ.160

Typ.150

Lumen Maintenance @ 6000 hrs Hours >80%
Switching Cycle before Failure Times 100,000
Life Span Hours 50,000
Warranty Years 3 years
Operation Temperature -15 ~ +50℃
Storage Temperature -25 ~ +55℃



High-touched service is what Dualrays aim to provide for our global customers.

Pre-Sales Service
a. Provide details about the production procedure;
b. Assign engineers for installation and testing;
Sales Service
a. Customized solution designs;
b. Product rendering and dialux simulation;
c. Dualrays successful sample projects and visit our production lines and R&D base.

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
Character/Length
2ft
4ft
5ft
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
(I) Emergency Function
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

Shipment
4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

Q1: Is there a MOQ?

RE: No MOQ, Sample order for testing is welcome.



Q2: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;


Q3: Finished color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.


Q4: Is there cheap shipping cost to import to our country?

RE: For small order, express will be best. And for bulk order,ship by sea or train(Europe destination) is the best, but take much time. For urgent orders, we suggest via air to airport plus our ship partner send to your door.



Q5: Does Dualrays have the ability to do independence and development ?

RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.



Q6. What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.



Q7. What’s the fire rating categories ?

RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10





4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK104ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

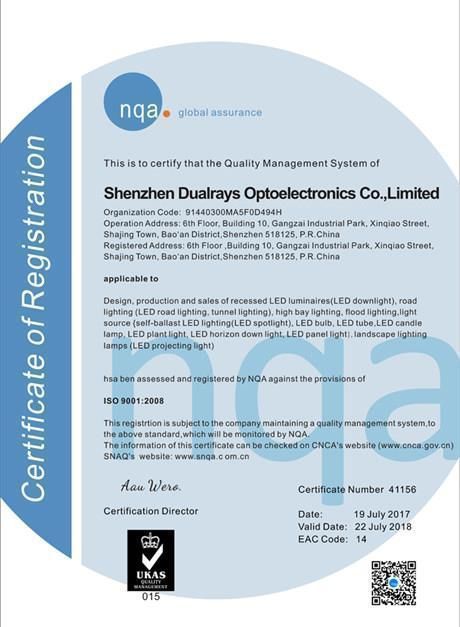

ISO9001:2008 ISO14001:2004

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK104ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10

The best quality innovation award Shenzhen Hi-tech Enterprise



4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
